Thermoforming Packaging Machines

Product Details

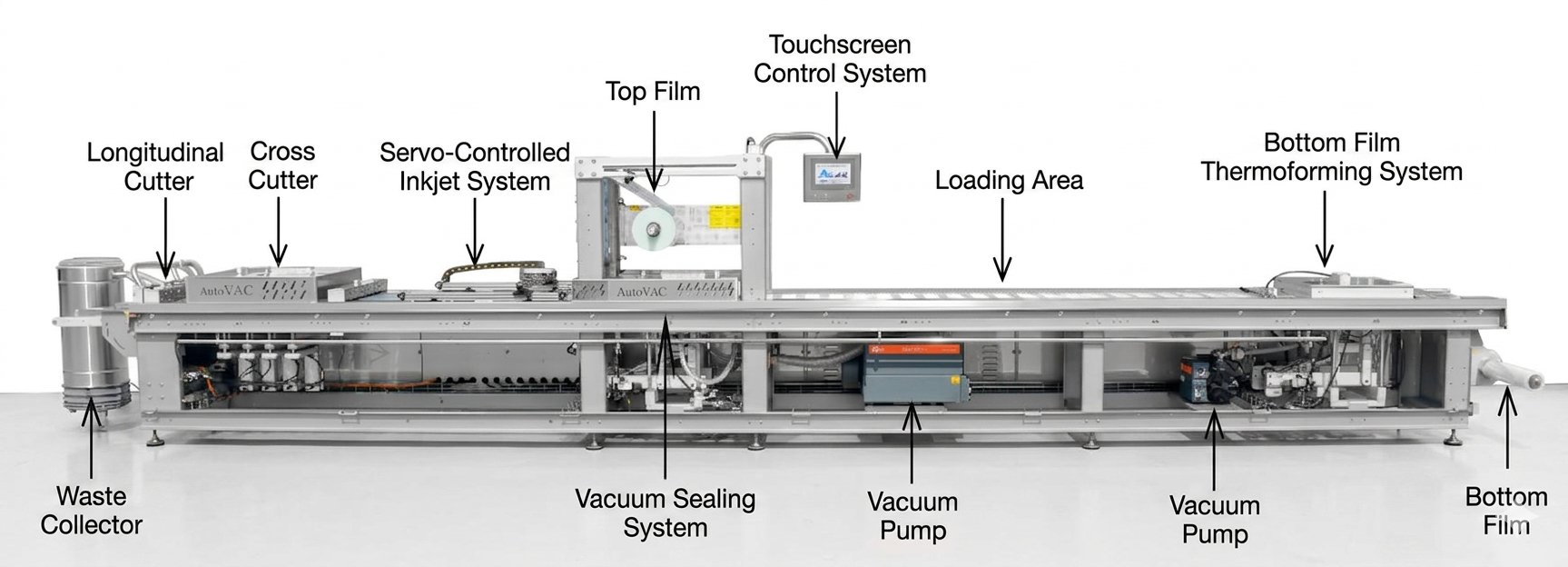

Sheet Feeding: Thermoplastic sheets are fed into the thermoforming machine from a roll or pre-cut sheets. The sheet is advanced through the machine using rollers or a conveyor system.

Heating: The sheet passes through the heating section where it is heated to a pliable temperature. Heating can be achieved through infrared heaters, radiant heaters, or other heating elements.

Forming: Once heated, the sheet moves to the forming station where it is positioned over a mold or into a mold cavity. Vacuum or pressure (or a combination of both) is applied to shape the heated sheet according to the mold contours.

Cooling: After forming, the packaging moves through a cooling station where cool air or water is applied to solidify and cool the formed packaging.

Trimming: Excess material is trimmed away from the formed packaging using cutting dies or knives that are part of the machine.

Discharge: Finished packaging is either stacked or conveyed out of the machine for filling and further processing.

Thermoforming packaging machines are versatile and efficient, capable of producing a wide range of packaging solutions for various industries including food, medical, electronics, and consumer goods. Their automated processes ensure consistency and reliability in packaging production while optimizing material usage and production speed.




Equipment features

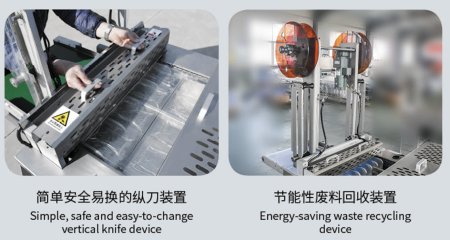

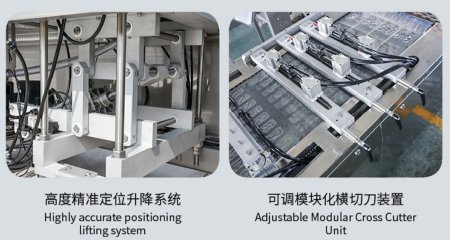

  • thermoformer2

    Fast, simple, easy change over for die sets

  • thermoformer1

    Durable stainless steel construction

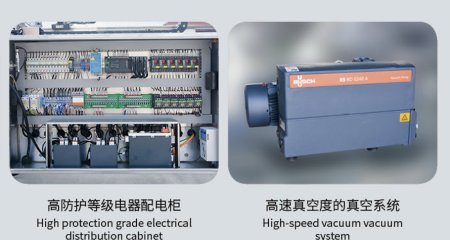

  • thermoformer3

    High efficient European vacuum pump

  • thermoformer4

    Machine can be set up for clear and printed film

  • thermoformer5

    Safety measures conform to CE regulations

  • thermoformer6

    Special design is available for various product

Specifications

Thermoforming Packaging Machine
ModelWidth of upper filmWidth of lower filmVacuum degreeCompressed airPower supplyPowerWeight
Dimensions
DLZ-420397mm424mm≤ 200 Pa≥ 0.6 Mpa380V/50Hz/3P, on demand16 kw1800kg
6600X1100X1960mm
DLZ-520
497mm524mm≤ 200 Pa≥ 0.6 Mpa380V/50Hz/3P, on demand18 kw2100kg7600X1200X1960mm
